Warranty : 1 Year for machinery warranty
Availability : On Stock

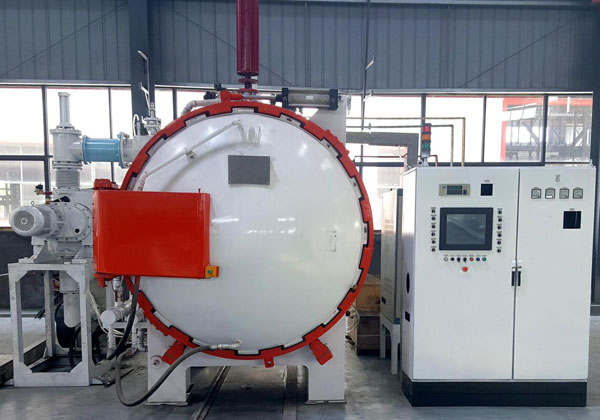

Vacuum Gas Quenching Furnace is applied for quenching high-speed tool steel, measuring vacuum hardening and cutting steel, tool steel and other alloy steel, with convection heating function, which can achieve the process of step hardening, but also tempering, annealing and other heat treatment process.
Vacuum Gas Quenching Furnace is applied for quenching high-speed tool steel, measuring vacuum hardening and cutting steel, tool steel and other alloy steel, with convection heating function, which can achieve the process of step hardening, but also tempering, annealing and other heat treatment process.
Ultimate pressure : cooling gas ,6Bar or 10Bar or 12 Bar.
The control system was controlled by PLC, temperature was controlled by intelligent temperature controller, accurate control,high automation. User can choose auto or manual undisturbed switching to operate it, this furnace has abnormal condition alarming function, easy to operate.
Environmental protection performance of vacuum furnace has been improved, maintenance cost saving, energy cost saving.
● Network system, support network remote control and data transmission functions.
● Remote fault diagnosis, remote process debugging, etc.
● Support software update.
Model
|
Temperature Uniform Size
|
MAX Temperature | Cooling Gas Pressure |
Pressure Rising Rate | Temperature Uniformity | Loading Capacity |
RQGH-335 | 300*300*500mm | 1300℃ | 6/10/15/20Bar | 0.5Pa/h | ±5℃ | 50Kg |
RQGH-446 | 400*400*600mm | 1300℃ | 6/10/15/20Bar | 0.5Pa/h | ±5℃ | 100Kg |
RQGH-669 | 600*600*900mm | 1300℃ | 6/10/15/20Bar | 0.5Pa/h | ±5℃ | 200Kg |
RQGH-7710 | 700*700*1000mm | 1300℃ | 6/10/15/20Bar | 0.5Pa/h | ±5℃ | 500Kg |
RQGH-8812 | 800*800*1200mm | 1300℃ | 6/10/15/20Bar | 0.5Pa/h | ±5℃ | 800Kg |
RQGH-V0405 | φ400*500mm(vertical) | 1300℃ | 6/10/15/20Bar | 0.5Pa/h | ±5℃ | 100kg |
RQGH-V0507 | φ500*700mm(vertical) | 1300℃ | 6/10/15/20Bar | 0.5Pa/h | ±5℃ | 200kg |
RQGH-V7011 | φ700*1100mm(vertical) | 1300℃ | 6/10/15/20Bar | 0.5Pa/h | ±5℃ | 800Kg |
