Warranty : 1 Year for machinery warranty
Availability : On Stock

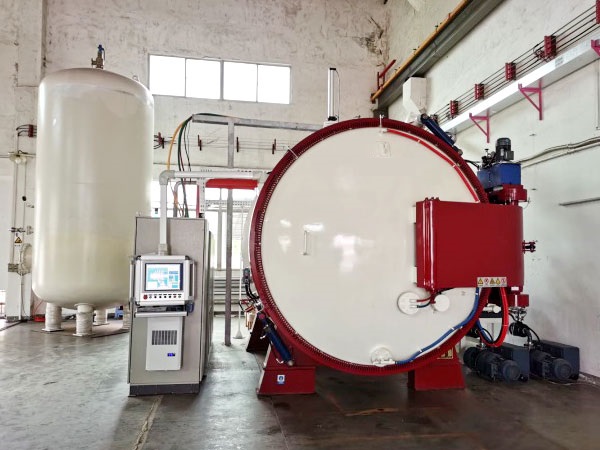

Vacuum Annealing Furnace is applied for annealing and aging treatment of a variety of alloy materials, devices (tungsten, molybdenum, niobium, copper alloy, etc.),
Vacuum Annealing Furnace is applied for annealing and aging treatment of a variety of alloy materials, devices (tungsten, molybdenum, niobium, copper alloy, etc.), magnetic materials, electrical steel, magnetic alloy, stainless steel, heat-resistant alloys, copper and its alloys, hydrogen storage alloy, active and hard molten metal. It can also be used for vacuum sintering of magnetic material, diamond, hydrogen storage material reduction.
The control system was controlled by PLC, temperature was controlled by intelligent temp controller, accurate control, high automation. User can choose auto or manual undisturbed switching to operate it, this vacuum furnace has abnormal condition alarming function, easy to operate.
Environmental protection performance has been improved, maintenance cost saving, energy cost saving.
● Network system, support network remote control and data transmission functions.
● Remote fault diagnosis, remote process debugging, etc.
● Support software update.
Model | Temperature Uniform Size
(W*H*L) |
MAX Temperature | Ultimate Pressure | Pressure Rising Rate | Temperature Uniformity | Loading Capacity |
RQA-448 | 400*400*800mm | 1350℃ | 6*10-3Pa | 0.5Pa/h | ±5℃ | 100Kg |
RQA-459 | 450*450*900mm | 1350℃ | 6*10-3Pa | 0.5Pa/h | ±5℃ | 150Kg |
RQA-669 | 600*600*900mm | 1350℃ | 6*10-3Pa | 0.5Pa/h | ±5℃ | 200Kg |
RQA-6612 | 600*600*1200mm | 1350℃ | 6*10-3Pa | 0.5Pa/h | ±5℃ | 300Kg |
RQA-7712 | 700*700*1200mm | 1350℃ | 6*10-3Pa | 0.5Pa/h | ±5℃ | 500Kg |
RQA-8812 | 800*800*1200mm | 1350℃ | 6*10-3Pa | 0.5Pa/h | ±5℃ | 800Kg |
RQA-3575 | 350*350*7500mm | 1350℃ | 6*10-3Pa | 0.5Pa/h | ±5℃ | 1000Kg |
RQA-11630 | 1100*600*3000mm | 1350℃ | 6*10-3Pa | 0.5Pa/h | ±5℃ | 3000Kg |
Please send your quotation and we will contact you within 1 hour.
