MIM /CIM/ Catamold feedstock/3D Printing Catalytic Debinding Furnace

Warranty : 1 Year for machinery warranty

Availability : On Stock

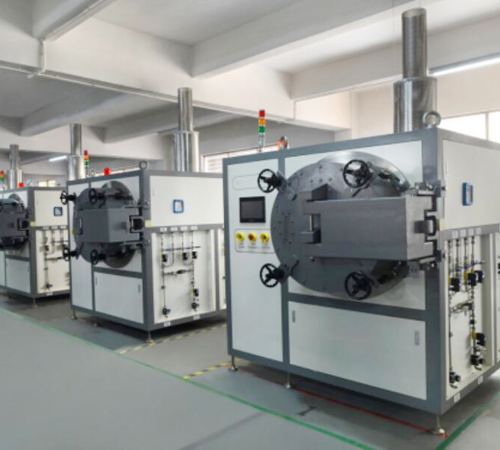

Catalytic debinding furnace is mainly suitable for rapid catalytic debinding of metal injection molding and ceramic injection molding (MIM/CIM/Catamold Feedstock) products.

Share

Description :
Catalytic debinding furnace is mainly suitable for rapid catalytic debinding of metal injection molding and ceramic injection molding (MIM/CIM/Catamold Feedstock) products.

Catalytic Debinding Furnace Technical Features:
1. The furnace is made of high quality stainless steel material SS316L, which has god anti-corrosion performance and appearance.
2. It uses special muffle design and gas distribution, so the uniform gas flow result a good debinding effect.
3. Multiple active and passive safety explosion-proof designs, leading the world in safety performance;
4. The uniquely designed rapid debinding system greatly improves debinding efficiency on the premise of ensuring debinding uniformity;
5. Precision suction cup metering pump ensures accurate and quantitative injection of nitric acid;
6. The arc structure design of the rear part of the furnace outer tank and the furnace door makes the atmosphere flow more smoothly;
7. The inner liner is closed to avoid the dead angle of debinding;

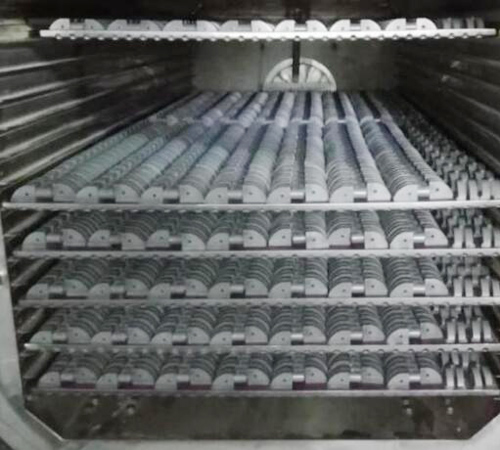

8. The layered design of the workpiece loading basket avoids the problem of the core being debinding and impermeable;

The HMI is a 10-inch touch screen, which can also be operated with an external mouse and keyboard, including the following functions:
1. Real-time monitoring and alarming of equipment operating status (gas flow, temperature, pressure, combustion flame);
2. Automatic operation mode and process segment parameter setting;
3. Manual operation mode and parameter setting;
4. Graph display and storage of temperature and gas flow and other customized functions;

Model Temperature Uniformity Size(W*H*L) Max. Temperature Heating Power Catalytic Medium Working gas
CDF-335 305*305*500mm 200℃ 8kW HNO3 N2
CDF-4410 425*425*1000 mm 200℃ 16kW HNO3 N2
CDF-5512 503*530*1260mm 200℃ 25kW HNO3 N2
CDF-5512 650*650*1400mm 200℃ 50kW HNO3 N2
