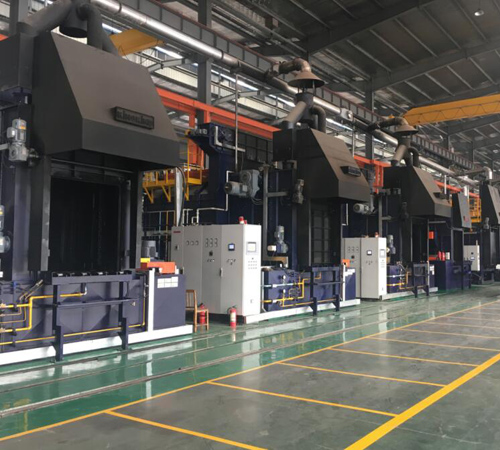

1.Horizontal Protective Atmosphere Carburizng Hardening Multipurpose Furnace
RQ series horizontal protective atmosphere carburizng hardening multipurpose furnace is designed and manufactured wholly according European standard, most of the important parts are from Germany or other kind of famous brand. The furnace has two chambers structure, one is heating chamber and another is oil quenching chamber, it can be used in carburizing, carbonitriding or protective atmosphere heating process. The front heating chamber is equipped with lift and quenching oil tank, the workpiece heating and quenching in the sealed state, safe and reliable. The furnace used for gear, bearing, pin roll and hydraulic parts complete carburizing, carbonitirding, quenching, normalizing, quenching ,hardening and tempering process.

Horizontal Protective Atmosphere Carburizng Hardening Multipurpose Furnace Features:
1)The heating chamber adopts muffle structure to keep good temperature and atmosphere uniformity for heating jobs.
2)Adopt low voltage radiant tube to keep safety and reliable running condition.
3)The front chamber adopt inner chain structure to keep safety. The heating jobs can be transferred SEW reducer which is good for handling when emergency happened.
4)Nitrogen-methanol atmosphere with accurate ratio control to keep carburizing jobs qualified final effect.
5)HMI with touch screen, of which all the datas such as process compiling, process tracking, temperature and CPP data recording and alarmings can be displayed.
6)All important components of furnace are famous brand to ensure furnace can be running at a smooth condition.

Horizontal Protective Atmosphere Carburizng Hardening Multipurpose Furnace Interface:
horizontal protective atmosphere carburizng hardening multipurpose furnace operating system interface is very friendly, vivid and audio-visual. It can realize compiling and executing different types of heat treatment programs and dynamic controlling real-time. It is convenient for the operator to control the process and monitor thefurnace.
According to the heating temperature of different segments of carburizing process, the system can automatic calculate and adjust carburizing time to ensure that the parts can reach the expected depth of carburizing.
Intelligent oxygen potential measurement and automatic adjustment are quick and accurate to control the atmosphere in the furnace. The heating jobs documents are easy for tracking.
Good process reproducibility, continuous and stable product quality.

2.Cleaning machine
1). Washing machine has the structure of single cleaning chamber with two liquid tanks.
2). Soak cleaning with foaming device can make waste oil get rid from the parts surface entirely.
3). Rotate spray unit can wash thoroughly waste oil and washing liquid out from the parts surface .
4). Both sides heating units make the heating jobs dry and bright quickly.
5). Oil water separate device installed with the washing machine.

3.Tempering furnace
1). Furnace circulating fan and air guide plate make the furnace good temperature uniformity.
2). Electric radiant tubes with long service life and easy maintenance.
3). Independent exhaust fan makes the environment is more friendly.
4). High temperature furnace using whole sealing structure with nitrogen purge to achieves less oxidation during tempering process.
